Six families.
One job.
Make material move.
Webac builds vibration equipment for the full process: pneumatic, electric and hydraulic drives, the tables they sit on, and the frequency converters that run them. Everything on this page is built or configured in Euskirchen.
Pneumatic vibrators
Air-powered ball, roller, turbine and piston vibrators. Oil-free variants available. ATEX certified options for zone 22 dust and zone 1 gas atmospheres.
- Drive
- Compressed air, 2 to 6 bar
- Types
- Ball, roller, turbine, piston
- Force
- 30 N to 18 000 N
- ATEX
- II 2D / II 2G available
Electric vibrators
Three-phase unbalance motor vibrators in WEV, EAW, EAO, Micro WM and DC 12/24 V series. Continuous-duty conveying, screening, compaction and silo discharge.
- Drive
- 3~ 400 V / DC 12 V / DC 24 V
- Poles
- 2, 4, 6 pole
- Protection
- IP 65 / IP 66
- Series
- WEV, EAW, EAO, WM
Hydraulic vibrators
Heavy-duty MVO 850 hydraulic vibrator with steplessly adjustable amplitude. Built to connect to on-board hydraulics of dump trucks, tractors, mixers and mobile plant.
- Type
- MVO 850
- Drive
- Hydraulic, vehicle on-board
- Amplitude
- Steplessly adjustable
- Duty
- Heavy continuous
ATEX vibrators
Explosion-protected pneumatic and electric vibrators certified for use in classified zones. Shipped with declaration of conformity and full technical file.
- Cert
- ATEX 2014 / 34 / EU
- Zones
- Gas zone 1 / dust zone 22
- Drive
- Pneumatic or electric
- Temp class
- T4 / T5

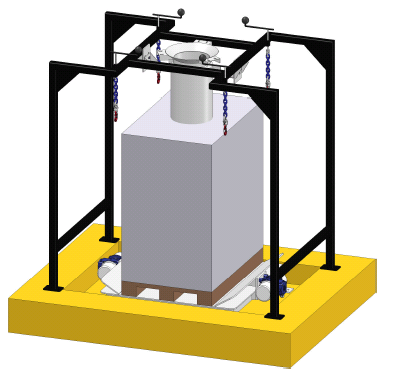

Vibrating tables
Custom-built vibrating tables including the KONDI for confectionery mould settling, big-bag compaction platforms, and concrete testing tables. Electric or pneumatic drive.
- Sizes
- 400 × 400 to 2000 × 2000 mm
- Drive
- Electric or pneumatic
- Variants
- KONDI, big-bag, concrete
- Build
- Welded steel, stainless
Frequency converters
Variable-frequency drives for electric vibration motors. Control speed, torque and direction with integrated EMC filters and vibration-specific application macros.
- Input
- 1~ / 3~ 230 V / 400 V
- Power
- 0.37 kW to 22 kW
- Protection
- IP 20 / IP 66 enclosure
- EMC
- Integrated filter
Tell us the material
and the batch size.
Every vibration job is different. Grain size, bulk density, moisture, wall thickness and cycle time all change the right answer. Send us what you know, we come back with a short list.
Request a selectionBulk density, moisture, grain size, abrasiveness, adhesion behaviour.
Silo, hopper, chute, table, conveyor. Wall thickness, volume, geometry.
Batch or continuous, cycle time, throughput target, ambient conditions.
ATEX zones, washdown, hygiene class, noise limits, supply voltage.
